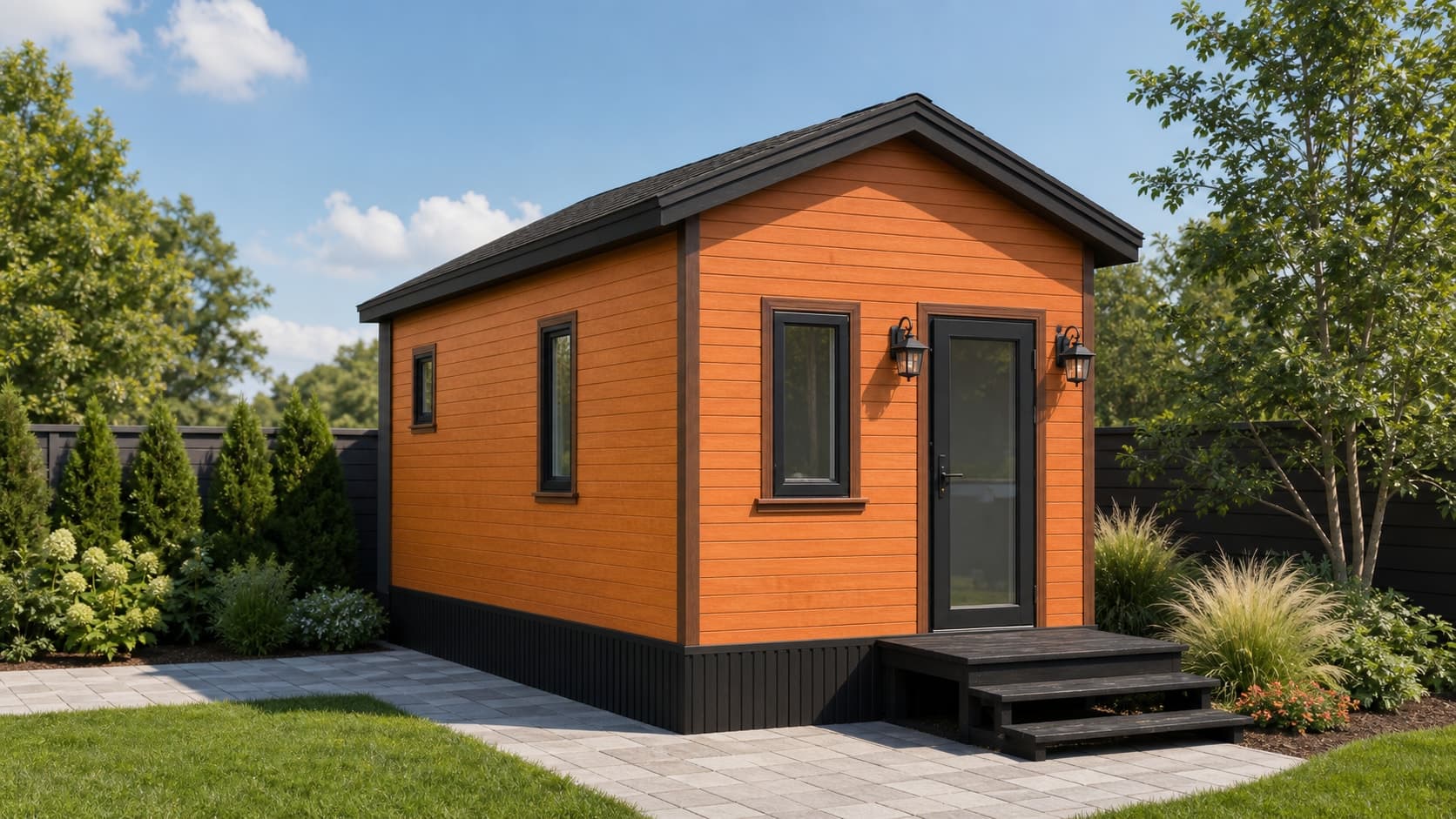

Tiny Villa T1
“Small but Big”A compact mountain-resort-inspired tiny villa designed around a 7 m × 3 m footprint, warm pine wood cladding and a lofted sleeping area. Built from structural insulated panels (SIPs), the flat-packed panelized shell is positioned as an entry-level option for guest houses, compact rentals and small-site living in California.
Specifications
| Exterior dimensions | 22'11" (L) × 9'10" (W) × 12'2" (H) |
|---|---|
| Floor area | 271 sq ft (25.2 m²) |
| Layout | 1 bed · 1 bath · loft |
| Structure | SIPs — walls 4.5" (114 mm), R-value 16; roof 6.5" (165 mm), R-value 24; glulam beam |
| Roofing | UDL roof waterproofing and asphalt shingle |
| Siding | Pine wood cladding with wood soffit and fascia |
| Windows & doors | Aluminum windows and door with wooden trim |
| Interior finish | Gypsum board for interior wall and ceiling; interior decoration by others |
What the kit includes
- ✓SIPs shell package
- ✓UDL roof waterproofing and asphalt shingle
- ✓House wrap
- ✓Pine wood cladding
- ✓Wood soffit and fascia
- ✓Aluminum windows and door with wooden trim
- ✓Metal flashing
- ✓Gypsum board for interior wall and ceiling
Note: Shell kit excludes interior decoration, wiring, plumbing, kitchen/washroom facilities and other fixtures. Shipping, foundation and installation are quoted separately.
Before you buy: site compliance checklist
The park model RV pathway certifies the unit — it does not grant the right to place the unit on any particular piece of land. Certification and placement are two separate approvals with two different owners:
| Stage | What happens | Who owns it |
|---|---|---|
| Factory production | Unit built to the ANSI A119.5 park model standard, with third-party inspection during production. | KyangLab |
| Certification documents | Certification and specification documents provided with the unit for your local review. | KyangLab |
| Placement approval | Zoning check and placement permission for a park model RV on your specific parcel. | You + your city/county planning department |
| Utility connections | Water, sewer/septic and electrical hookup permits. | You + local licensed trades |
Three questions to ask your planning department first
Take the spec sheet for this model and ask your city or county planning department these questions before committing to a purchase:
- 1“Does your zoning ordinance allow placement of a Park Model RV (ANSI A119.5) on this parcel?”
- 2“What permits are required for utility hookups (water, sewer or septic, electrical)?”
- 3“Are there occupancy limits — for example, a cap on how many days per year the unit can be lived in?”
One more thing to know: a park model unit is legally a vehicle and must retain its mobility. If it is installed on a permanent foundation, your jurisdiction may reclassify it as a dwelling and apply full building standards instead. We will flag this trade-off with you during the site feasibility review.
Gallery

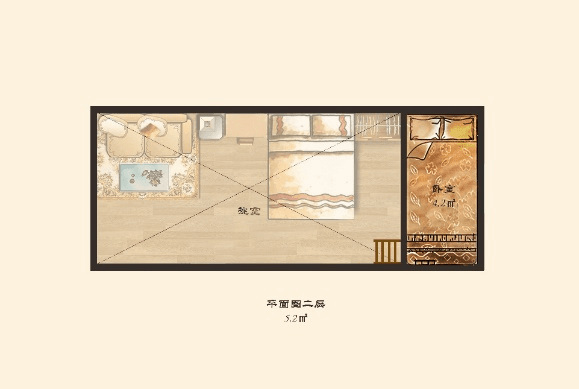

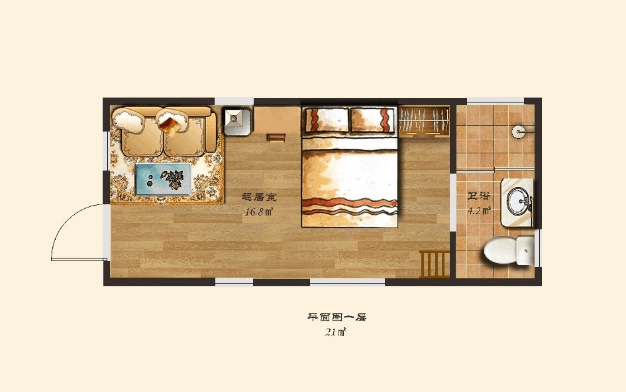

Floor plan

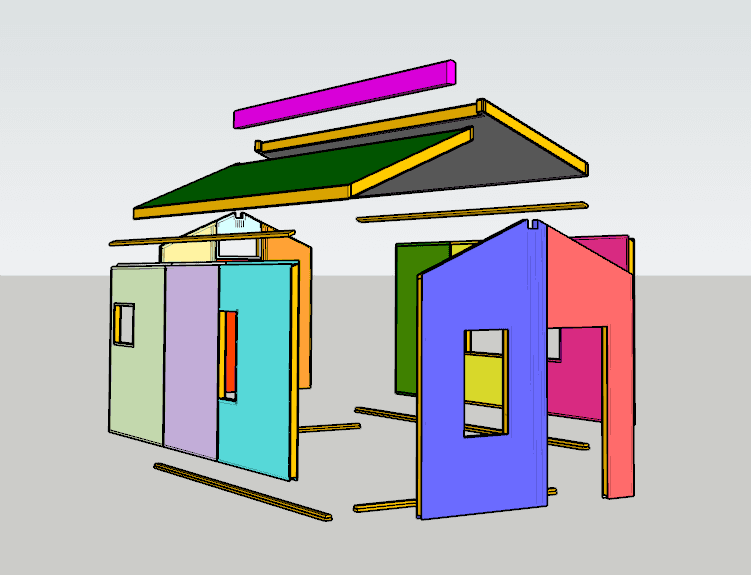

How the kit works
Panelized shell can typically be erected within one day by a four-person crew, subject to site conditions and local coordination.
Tiny Villa T1 FAQs
What is included in the Tiny Villa T1 shell kit?
The kit includes the SIPs shell package, UDL roof waterproofing, asphalt shingle, house wrap, pine wood cladding, wood soffit and fascia, aluminum windows and door with wooden trim, metal flashing, and gypsum board for interior wall and ceiling. Interior decoration, wiring, plumbing, kitchen/washroom facilities and fixtures are not included.
How large is the Tiny Villa T1?
The Tiny Villa T1 uses an exterior size of approximately 7 m × 3 m × 3.7 m, with a stated total floor area of 25.2 m² (about 271 sq ft), including the loft area.
Can I use the Tiny Villa T1 as an ADU or guest house in California?
It depends on your city or county and the intended use. State-level factory programs do not replace local review of zoning, foundation, utilities, fire access, setbacks and building permits. Contact us for the current compliance status for your jurisdiction.
